Test of a lawn mower
equipped with
Processor Multi-Fuels of Paul Pantone
All
information and diagrams are published freely (freeware) and are
intended for a private use and a noncommercial use
Created on
10-22-00 - JLN Labs - Updated on 10-22-00
The Multi-Fuels Processor of GEET is a new
internationally patented technology (US005794601A1) whose
inventor is Paul Pantone. This revolutionary system allows the
common 4 strokes engines to run with a water/hydrocarbure mixture.
It is able to use all types of fuels (gasoline, diesel, kerosene,
crude oils and others derived from hydrocarbons...) with its endothermic
plasma reactor.
The Multi-Fuels Processor allows also a significant reduction of pollution
generated by the gaz exhaust of almost 85% compared to a
conventional engine.
Tests carried out by many industrialists and experimenters
already showed that it is even possible to make function an
engine equipped with this device with a mixture of hydrocarbons (20%) and water
(80%)...
The device is composed of three principal parts:
The conventional carburettor and the muffler (and its catalytic system) are not necessary any more after installation of the device.

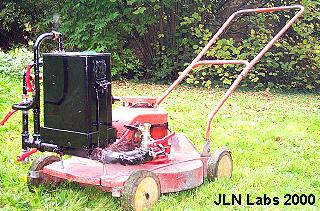

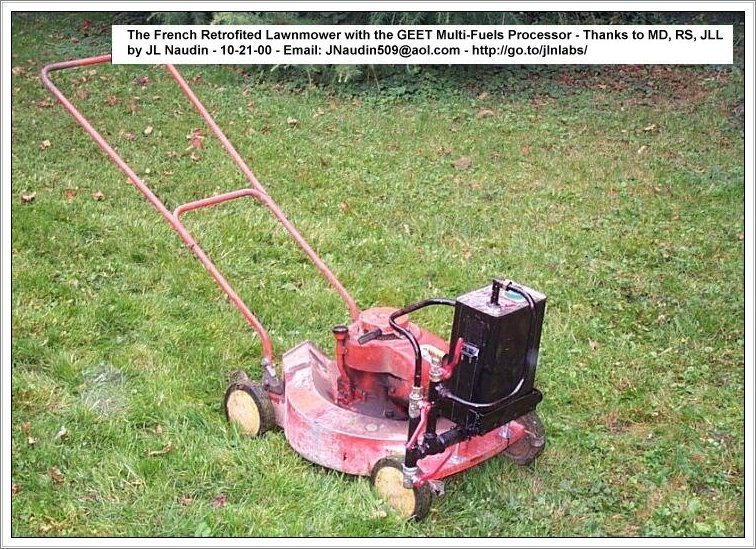

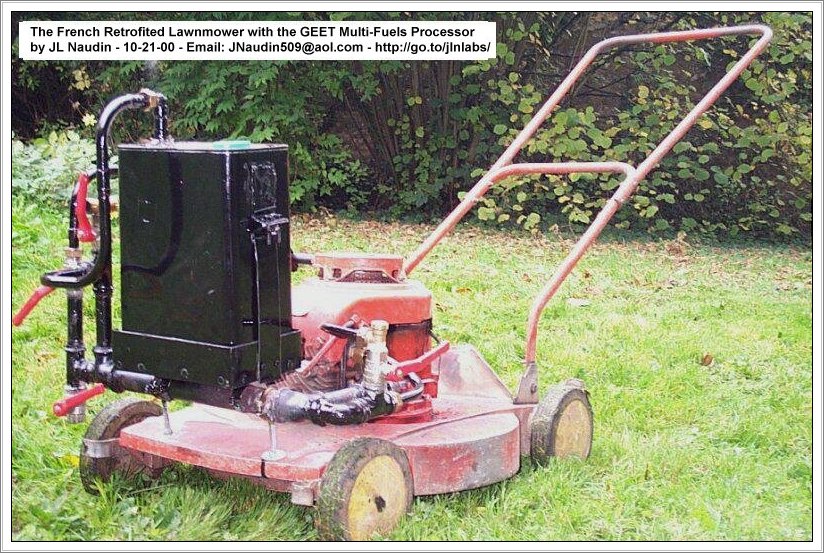

Tests by J-L Naudin of a retroffited lawn mower with the GEET Multi-Fuels Processor
October 21 2000, I was pleased to test myself and this for the first time, a lawn mower been driven by a 4 strokes engine retrofitted with the Multi-Fuels Processor invented by Paul Pantone. All the parts used are standard and come from stores of do-it-yourself and/or hypermarkets ( plumbing departement ). The parts were selected to be more closer to the original plan published freely by Pantone on the Internet network the 11-11-99. You will find at the bottom of this page, the diagram of my current setup under tests which gives me whole satisfaction. The bubbler is a simple metal can of 5 liters. The assembly of the unit was carried out so that the machine can be used in real conditions of use (shearing of grass).

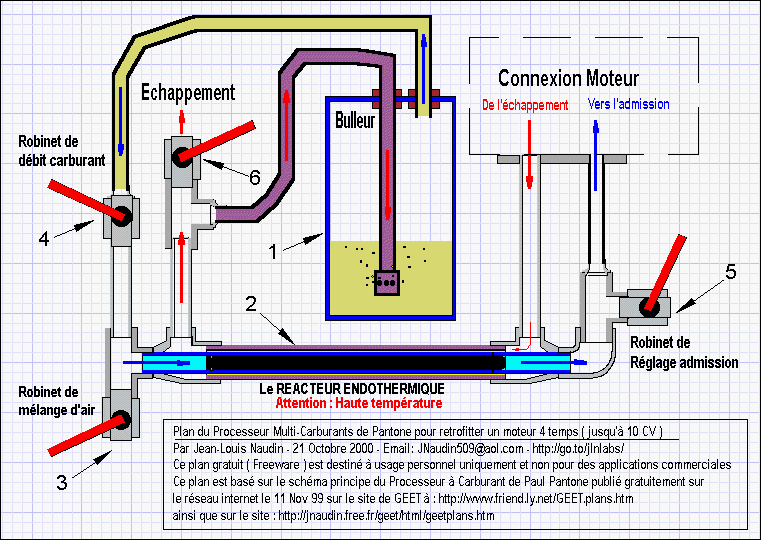

Description and basic principles of the endothermic plasma reactor (by Jean-Louis Naudin) :
The heart of the Multi-Fuels Processor of GEET is a self-inducing plasma generator or a plasma reactor with endothermic reaction.
The endothermic reactor is composed of two coaxial
steel cylinders:
- the interior cylinder (threaded at each end), called the
pyrolytic chamber (430mm length and 15mm of inner diameter)
contains a steel rod of 300mm length and 13mm of diameter (not
magnetized before the burning-in). A side of this steel rod is
round in order to identify its magnetic polarity after its
disassembling. The rod is maintained in the center of the
pyrolytic chamber with to 3 small nipples welded at each end.
- the external cylinder (threaded at each end) is a steel tube of
300mm length and 26mm of inner diameter.
The two cylinders are placed coaxialy with two reducing T (showed
on the diagram below) placed at each end.
The bubbler is a tank containing a mixture of water and hydrocabures (gasoline, diesel, kerosene, crude oils and others derived from hydrocarbons...).
The hot gas flow coming from the exhaust of the engine circulates by the outside part of the reactor with a strong kinetic energy, that contributes to bring up to very high temperature the steel rod (being used as heat accumulator) contained in the pyrolytic chamber. The gases cross the engine and penetrate then in the bubbler containing the water/hydrocarbures mixture. The vapor of the mixture is strongly aspired by the vacuum created by the engine intake and is pushed by the pressure coming from the exhaust. The kinetic energy of the vapor is increased considerably by the reduction of the diameter in the pyrolytic chamber (by Venturi effect). The combined effect of the high temperature and the increase of the kinetic energy produces a thermochemical decomposition ( molecular breakdown ) of the water/hydrocarbures mixture. This transformation of the vaporized water/hydrocarbures mixture creates hydrogen available, and thus this generates a high-energy fuel. It is noted that after one period of burning-in of about 20 minutes, the axis of the engine being aligned with the terrestrial magnetic field, the steel bar of the pyrolytic chamber is magnetized. The bidirectional flow of hot and cold stream of gases produces a potential difference contributing to the formation of an active plasma interacting with the magnetic field of the bar. The gaz follow a vortex trajectory around the hot steel rod along its way in the pyrolytic chamber.
The endothermic reactor forms an Electro-Plasma-Chemical unit (EPC) and it is now possible to create a high-output fuel coming from the decomposition of the water contained in the water/hydrocarbures mixture. This fact is confirmed by the presence of oxygen gaz (O2) in great amount measured in the exhaust.

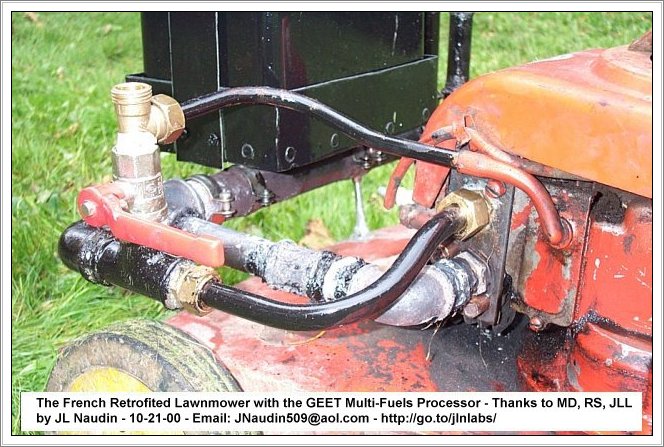

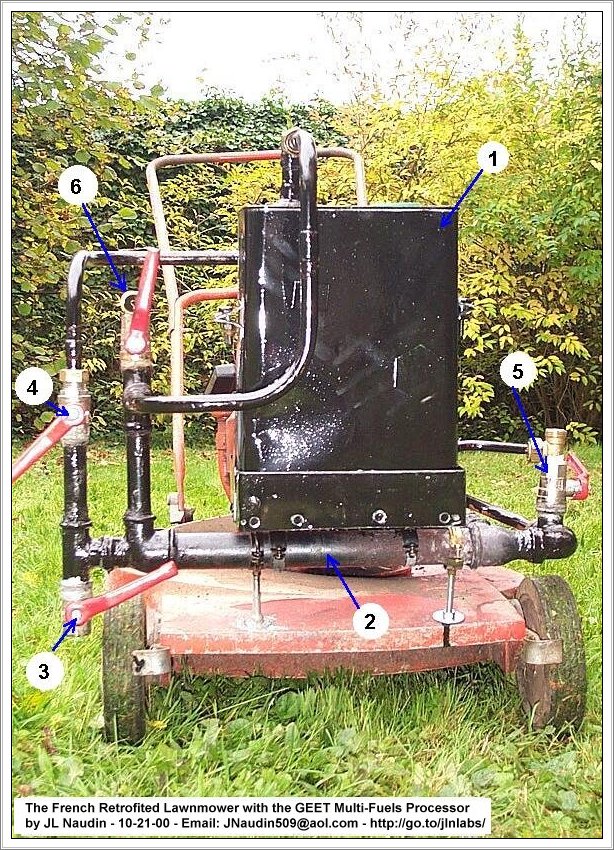

A close view of the Intake/Exhaust
connection of the engine
One break-in period of at
least 20 minutes with pure gasoline ( 95LL ) is necessary. The
mower was placed so that the axis of the endothermic engine (2)
is aligned with the North-South terrestrial magnetic axis. The
hot side of the reactor chamber (engine exhaust) is placed
towards the North, and this in accordance with the
recommendations of Paul Pantone. After this break-in period, the
tests of the mower started.
A first successful test was carried out with pure gasoline 95LL,
then a second test successful with a mixture of water 50% and
gasoline 50%.

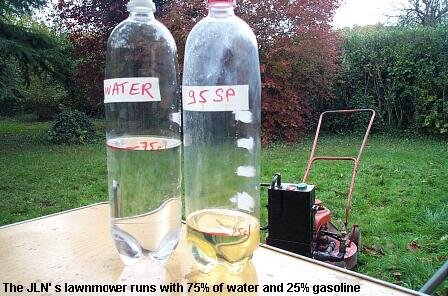

A test more
surprising were carried out
with 75%
of WATER and 25% of gasoline (95 LL) :
the retrofitted lawn mower runs very well in real condition of
use...
Starting is done without problem (like a normal mower) with simply a small fuel injection at the input of the admission valve (5) before launching. It is necessary to wait approximately 1 minute so that the engine reaches its optimal operating temperature (approximately 800° C). After this period of temperature setting, the engine of the mower is able to run at full speed. The max turn speed is obtained with the adjustments of the valves 3, 4, 5.

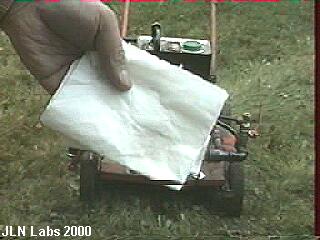

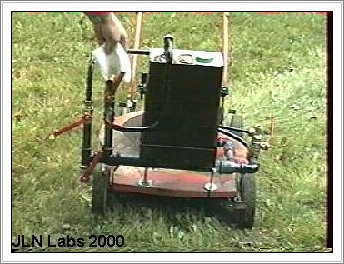

The exhaust gas are very clean and not very odorous.
On 10-22-00, I fully confirm that this lawn mower retroffited with the GEET Multi-Fuel Processor is able to run very well with 75% of water and 25% of gasoline.
Below some videos of the tests :
You must
have installed the application " RealPlayer Video ",
freely downloadable with
Click on a picture to see the corresponding video.
The first turns (burning-in of 20mn) of the
retrofitted engine with the Multi-Fuel Processor
you can also download
the video (1701 KB)

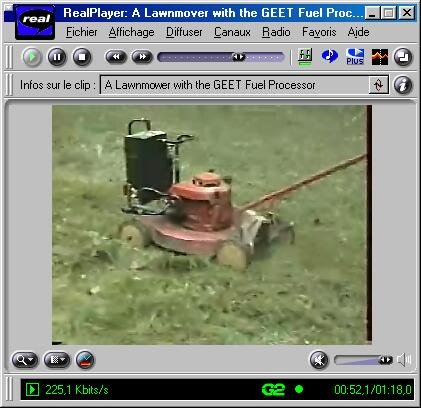

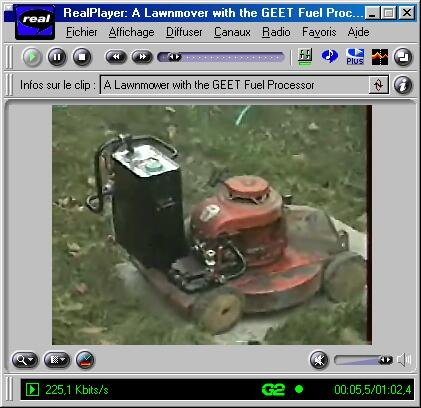

The lawn mower in action...
you can also download the video (2178
KB)

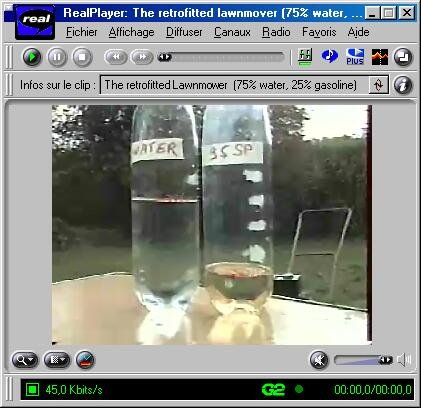

Video of the TEST with
75% of WATER and 25% of gasoline...
you can also download a medium quality
video (2374 KB)

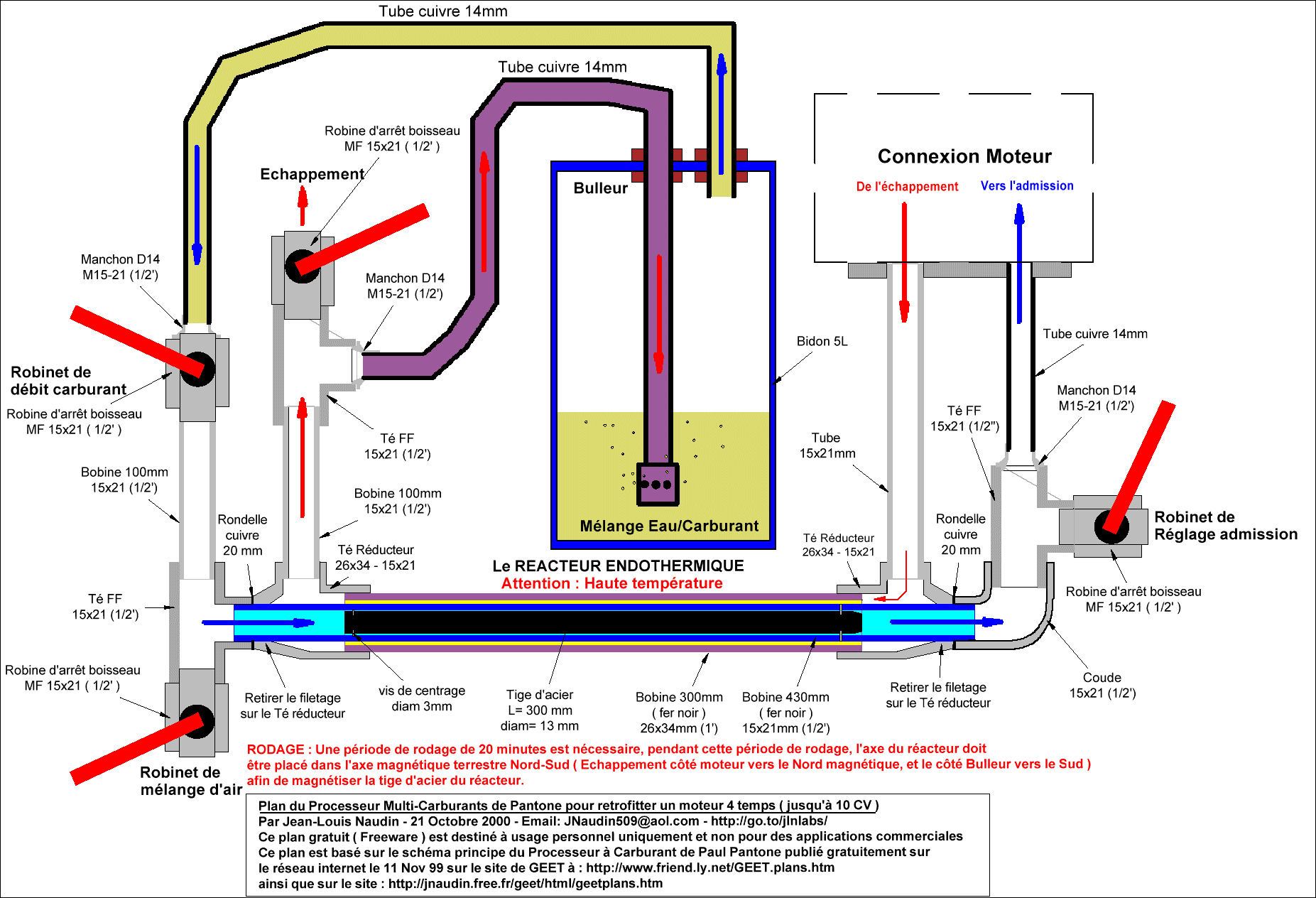

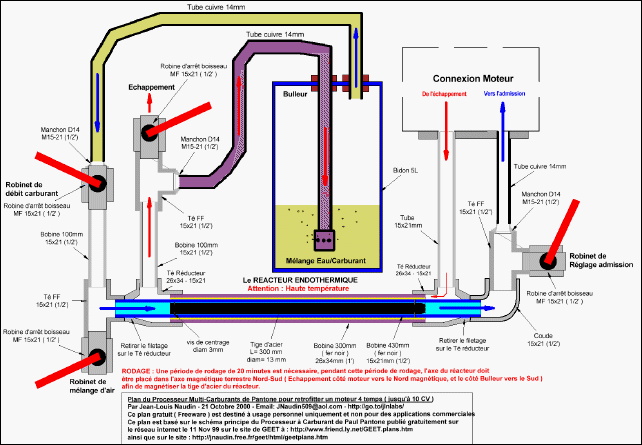

If you wish to check this fact by yourself, you will find below the real diagram used with my retrofitted lawn mower.
All information and diagrams are published freely (freeware) and are intended for a private use and a non commercial use.
I point out that all the tests must be carried out in the open air and in a wide place and by people qualified to handle the machine being used for the tests. This is an experiment and I decline any responsibility on the possible damage caused during your tests. This being carried out under your whole responsibility.
