A 5HP Electrical
Generator fully powered with the BingoFuel
Reactor
created on April 2, 2003 -
JLN Labs - Last update April 18,
2003
All
informations and diagrams are published freely (freeware) and are
intended for a private use and a non
commercial use.

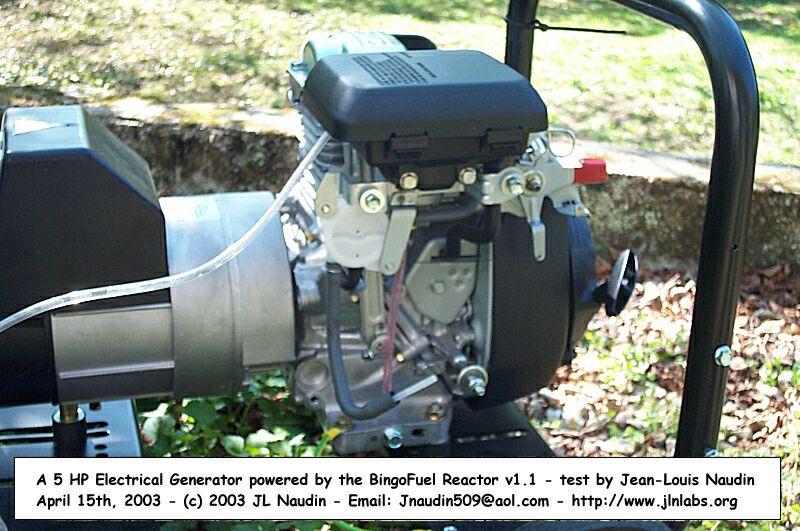

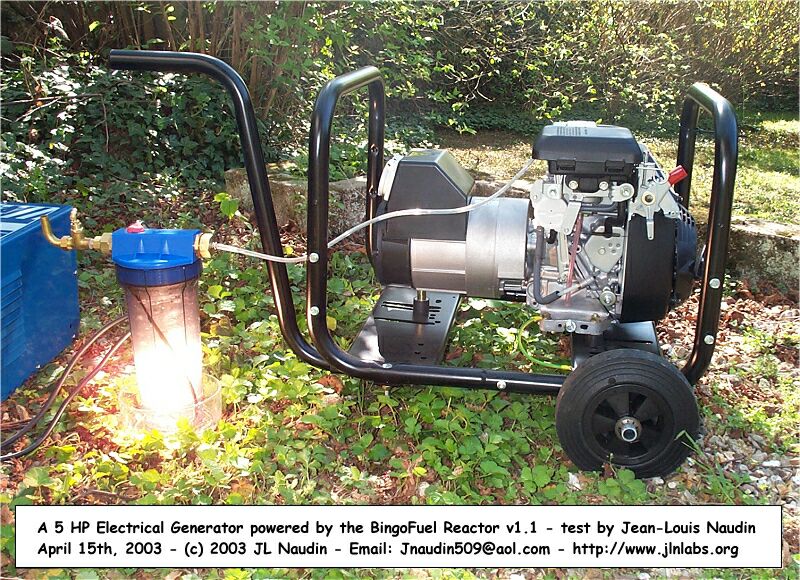

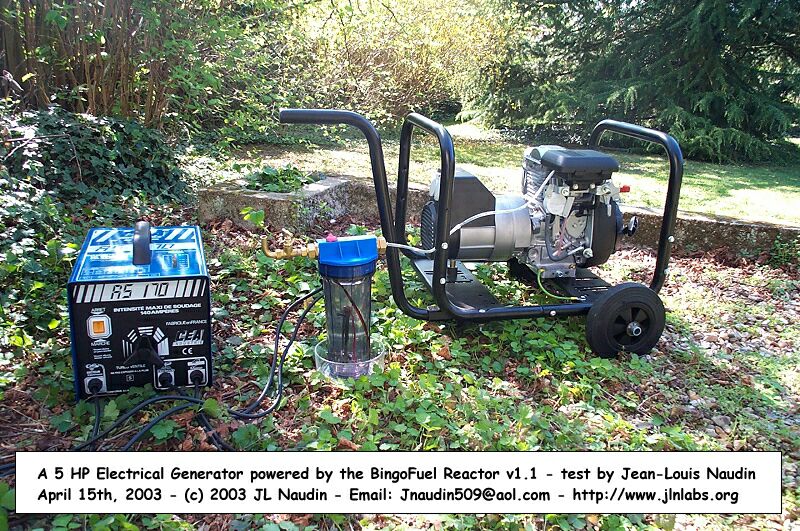

On April 15th, 2003, an Electrical Generator powered with a 5HP ( 160 cm3 ) 4-stroke combustion engine ( a Honda GC160 ) has been tested successfully with the BingoFuel Reactor. The 5HP combustion engine has been fully powered with synthetic gas produced by the BingoFuel Reactor.

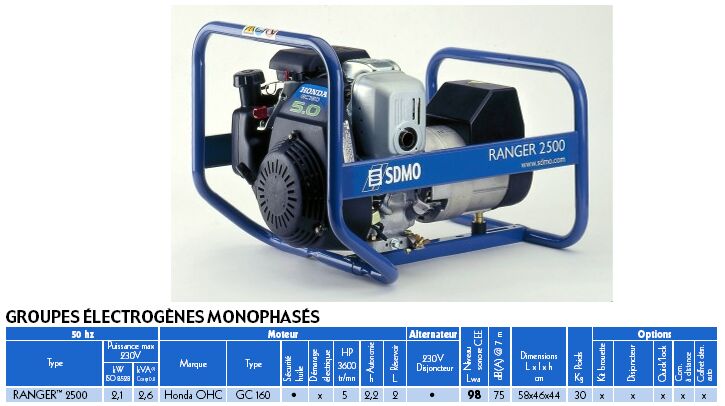

The Electrical Generator tested with the BingoFuel Reactor is a Ranger2500 from SDMO ( see below ) :
| ENGINE SPECIFICATIONS | ||
| MODEL | HONDA GC160 | |
| Type | 4-stroke, overhead camshaft single cylinder | |
| Total Displacement | 160 cm³ (9.8 cu in) | |
| Bore & Strike | 64 x 50 mm (2.5 x 2.0 in) | |
| Max Horsepower (Gross) | 3.7 kw ¹(5.0hp ) at 3,600 rpm | |
| Max Torque (Gross) | 10.3 N·m (1.05 kgf·m, 7.6 lbf·ft) at 2,500 rpm | |
| Compression Ratio | 8.5: 1 | |
| Fuel Consumption | 313 g/kWh (230 g/HPh, 0.51 lb/HPh) | |
| Cooling System | Forced-air | |
| Ignition System | Transistorized magneto ignition | |
| Ignition Timing | 20° B.T.D.C | |
| Spark Plug | BPR6ES (NGK) | |
| Carburetor | Horizontal type, butterfly valve | |
| Air Cleaner | Dry (paper) type | |
| Governor | Centifugal mechanical governor | |
| Lubricating System | Splash | |
| Oil Capacity | 0.58 lt (0.61 US qt, 0.55 Imp qt) | |
| Recommended operating ambient tempature | -15°C to 40°C (5°F to 104°F) | |
| Starting System | Recoil starter | |
| Stopping System | ignition primary circuit ground | |
| Fuel Used | Automotive unleaded gasoline (minimum 86 pump octane) | |
| Fuel tank capacity | 2.0 lt (0.53 US gal, 0.44 imp gal) | |
| P.T.O. Shaft Rotation | Counterclockwise (viewed from P.T.O. side) | |

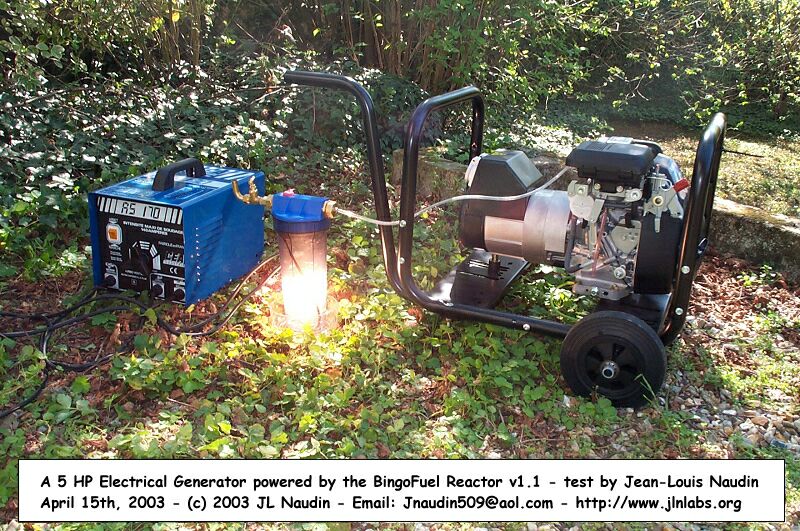

Photo above: The fuel tank ( not
used here ) has been completly removed for this test.

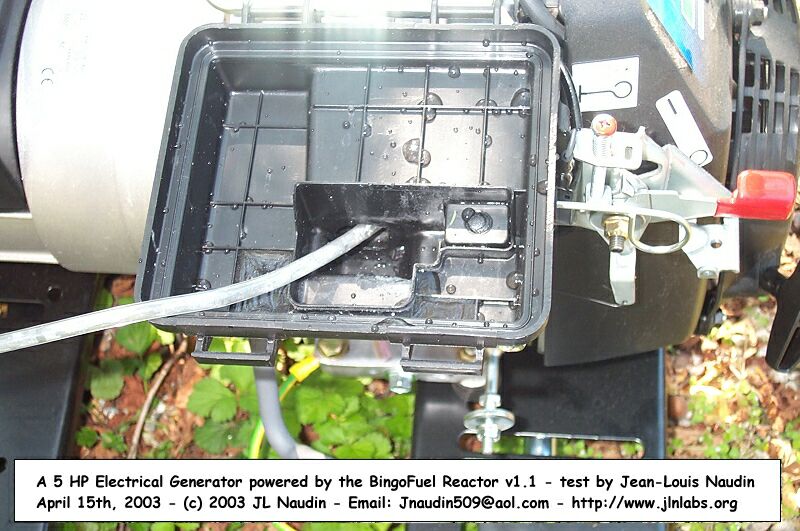

Photo above: The air filter has
been removed and the synthetic gas output is directly placed at the carburettor
input.
Tests results with the BingoFuel Reactor v1.1
Two tests runs have been conducted
successfully, in all the cases the 5HP engine has worked without any
problem.

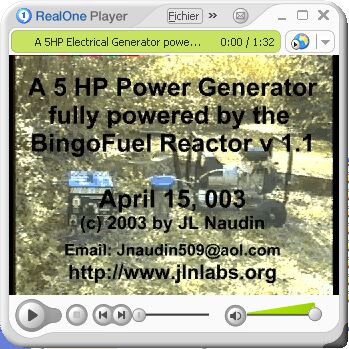

See the video of the 5HP engine fully powered with the BingoFuel Reactor
To see the video, the free downloadable
RealPlayer is required
You may download free the RealPlayer 8 Basic at : http://proforma.real.com/real/player/blackjack.html
Click on
the picture above to see the video ( 937 Kb )
Comments from JL Naudin : These tests are very encouraging and confirms fully that the synthetic gas generated by the BingoFuel Reactor can be used as fuel for a common combustion engine...
See also the previous tests :
