The
Cold Fusion Reactor v1.1
by JL Naudin
created on May 8, 2003 - JLN Labs
- Last update May 13, 2003
Toutes les
informations et schémas sont publiés gratuitement ( freeware ) et sont destinés
à un usage personnel et non commercial
All informations and
diagrams are published freely (freeware) and are intended for a private use and a non commercial use.
The Cold Fusion Reactor ( CFR v1.1 ) is fully based on the work of the researchers Tadahiko MIZUNO and Tadayoshi OHMORI from the Hokkaido University in Japan.
1 - Cold Fusion Reactor v1.1 - Description :

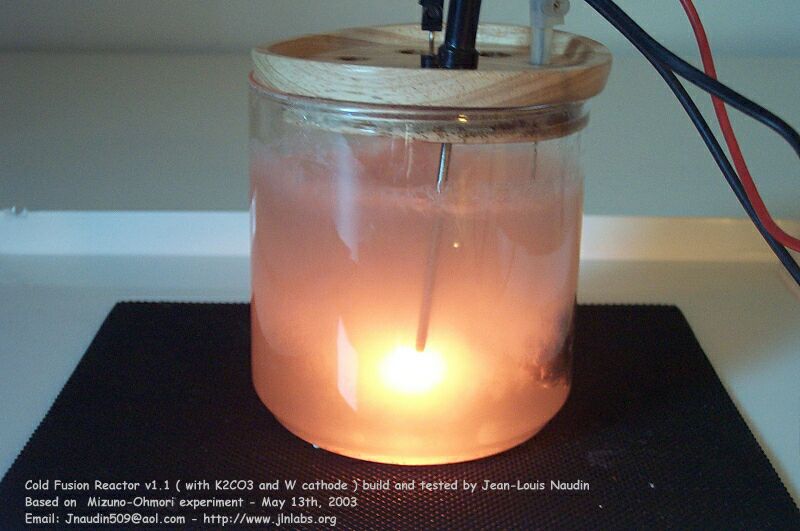

The Cold Fusion Reactor v1.1 is composed of a 700 mL glass vessel filled with a 600 mL solution of Potassium Carbonate ( K2CO3 ) 0.2 molar ( 0.2 M ).

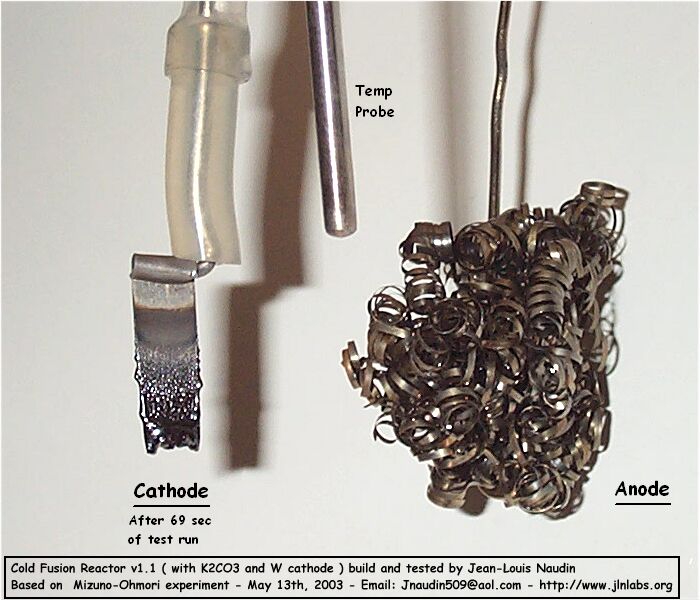

The Cathode used is a tungsten ( W ) plate 6 mm wide, 25 mm length and 0.5 mm thick. The Anode used is composed of stainless steel mesh maintained with a stainless steel shaft. All the wires connections are made with a 1.5 mm2 copper flexible wire gained with silicon.
2 - Experimental test setup :

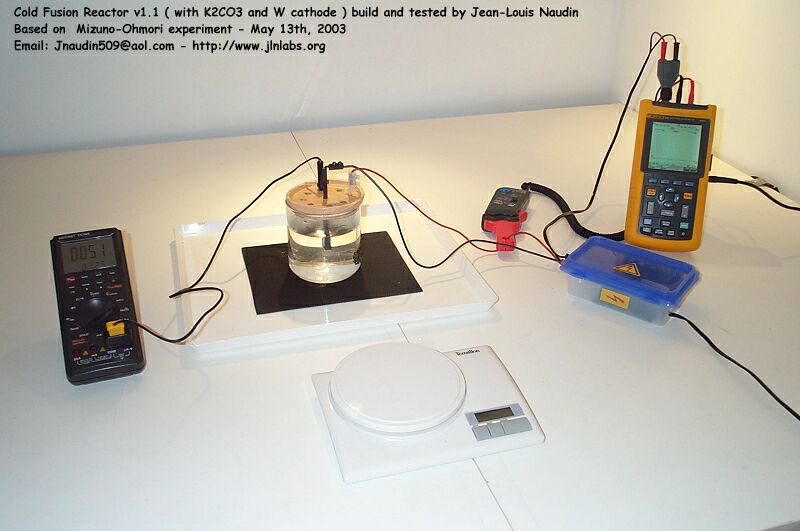

The CFR v1.1 is powered with a DC voltage through a bridge rectifier connected to an isolation transformer. The voltage input has been measured with a digital oscilloscope Fluke 123 with a Shielded Test Lead STL 120 ( 1:1, 1 Mohms/225 pF ). The current input has been measured with a current clamp CIE Model CA-60A ( Accuracy DC Amps ±1.5%, AC Amps±2% (40Hz-2kHz), AC Amps±4%(2kHz-10kHz), AC Amps±6%(10kHz-20kHz) ). The temperature has been measured with a type "K" temp probe ( NiCrNi ) connected on a VC506 digital multimeter ( -20°C to +1200 °C with an accuracy of +/- 3% ). ( see the photo above ).
3 - Tests results :
Test procedure :
1) The temperature
of the K2CO3
solution in the CFR has
been set initially to 90°C.

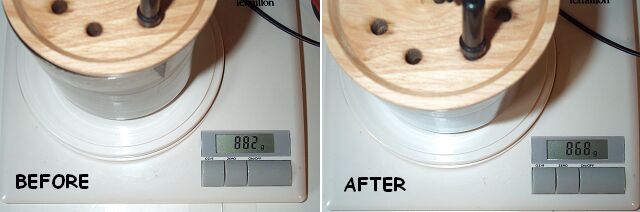

2) The weight of the CFR v1.1 has been measured
initially, it was 882 g.
3) The power supply has been switched on

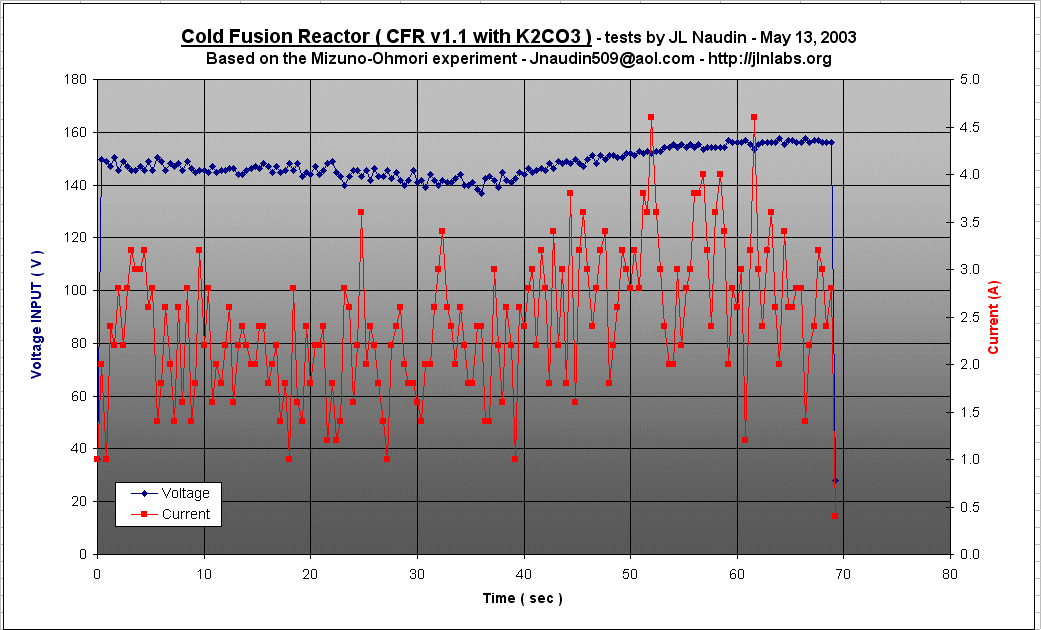

continuously and the Voltage/Current datas has been recorded in the Fluke 123
digital oscilloscope used as a data logger, up to a temperature of 96°C.
4)
Then the weight of the CFR v1.1 has been measured, it was 868 g.
The run time has been 69.2 seconds.
CFR v1.1 : POWER INPUT/OUTPUT - TESTS RESULTS :

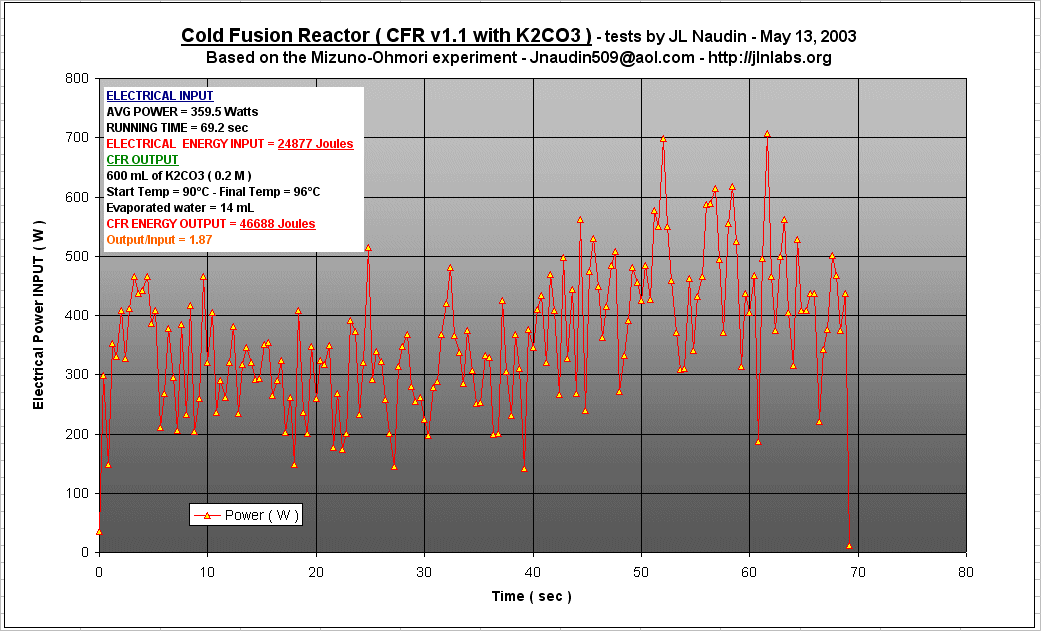

The Voltage/Current datas logged give an average electrical power input of 359.5 Watts during 69.2 seconds, so this gives :
ELECTRICAL ENERGY INPUT = 24877 Joules
The evaporated water in the CFR during the full boiling was 14 mL. We know that we need 2260 J/g to vaporize water. The temperature rise of the 600 mL was 6°C. So, this gives :
ENERGY OUTPUT = ( 14 x 2260 ) + ( 600 x 6 x 4.18 ) = 46688 Joules
Power OUTPUT = 674 Watts, Power Gain = 314 Watts
| Energy OUTPUT/INPUT = 46688 / 24877 = 1.87 |

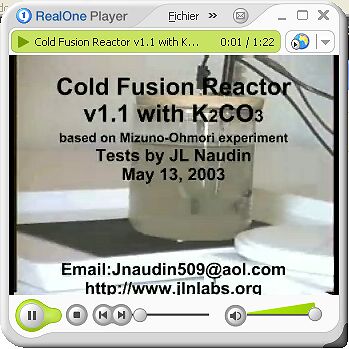

Animated video of the CFR v1.0 in
action
Power Input/Output - CFR
v1.1 Test
Click on the
picture above to see the video ( 824 Kb )
Notes from Jean-Louis Naudin : This new test of the CFR v1.1 with the Potassium Carbonate ( K2CO3 ) gives better results than with the Sodium Hydrogenocarbonate ( NaHCO3 ). The heat produced around the cathode is very strong and need 4.4 less of power than with the NaHCO3. In the energy output calculations, I have used only the energy of the heat generated by the plasma. The energy of the burning Hydrogen-Oxygen mixture has not been taken into account...
In a next test, I shall used a bigger Tungsten ( W ) cathode electrode for a longer test run...
Interesting documents and references :
See the previous tests :
CFR v1.3 tests with a 2x45 mm W cathode
