The AquaFuel(tm)generator

How to generate gasfrom water for use as Fuel

created on 12-06-98 - JLN Labs- last update on 12-08-98

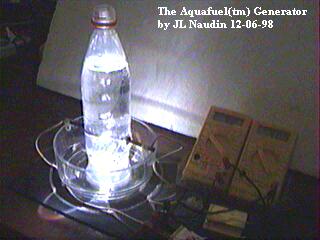

Today ( on 12-06-98 ), I have built and reproduced successfully a very simple AquaFuel™ generator:
"The AquaFuel^TM is anonfossil combustible gas discovered by Mr. Bill Richardson and currently developed by Technology Licensing (TTL)> of Largo, Florida, which is produced by an electric discharge of carbon arcs within distilled, fresh, salt or other types of water, thus beingessentially composed of Hydrogen, Oxygen, Carbon and their compounds". This technology has already been patented (US#5,159,900and US#5,417,817and US#5,435,274).
This generator produces a mixture of carbon monoxide and hydrogen(COH₂) and this is a gas wich burns very cleanly inoxygen or air, and it can be used as fuel for an internalcombustion engine. When burned, COH₂ produces carbondioxide and water vapor, so it generates very little, if any,pollution to the environnement.

This simple experiment is only fortesting purposes and only for a proof of the concept. This small generator can't be used for a long working period and it must beused only for demonstration.

You need to get very few materials and it is verysimple to build and test it....

BeCarefull, this device generates an explosive gas, you must conduct this test in awell ventiled room or better in open air,you must not smoke during the test.. Don't forget that the carbonmonoxide ( CO ) is a very toxic gas, so neverbreath this gas before burningit. This experiment is not intended for the inexperienced. User of this document should be verycarefull to try anything out ! If you do it the risk of anyresults is just yours. I take no responsibility of anything that might happen, let it be of a wrong information or anything else.

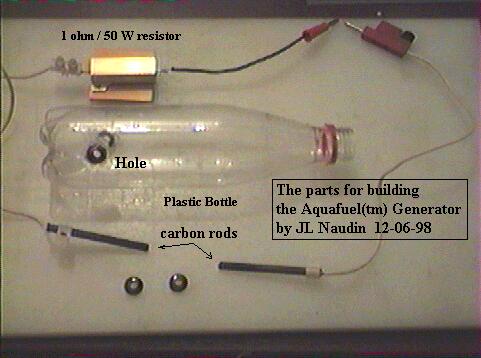

You need only to get :
- A little plastic soda bottle,
- two carbon rods ( 70mm length, 6mm diam )
- one 1 ohm 50Watts resistor
- a DC Power supply which is able to deliver 35v / 10A
- some wires, plugs and silicon cement.

Very few material is needed.....

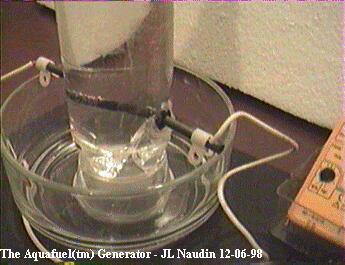

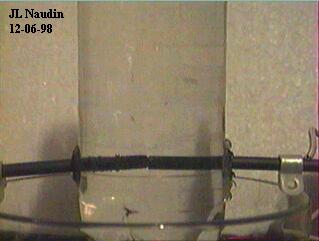

1) Drill two opposite holes (10mm diam)at 60mm from the bottom of the bottle and insert the carbon rodswith a rubber washer and glue the washer with silicon cement. Isuggest you to make one of the carbon rod into round shape. Thetwo carbon rods must be just slightly incontact before you switch on (see below).

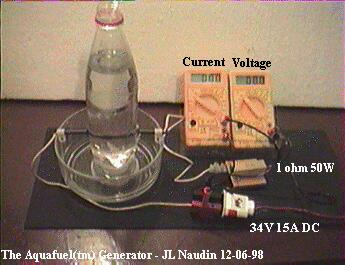

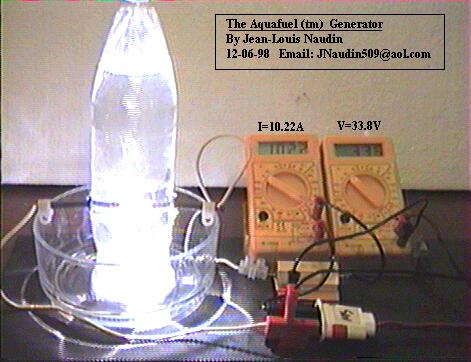

2) Connect the 1 ohm 50W resistor inseries with one of carbon rod and one pole of your DC power supply( set for 34V/15A DC), the other pole of your power supply isconnected to the other carbone rod. You may add some additionalmultimeters for measuring the Current and the Voltage input. Fillup your generator with only distilled or fresh water.

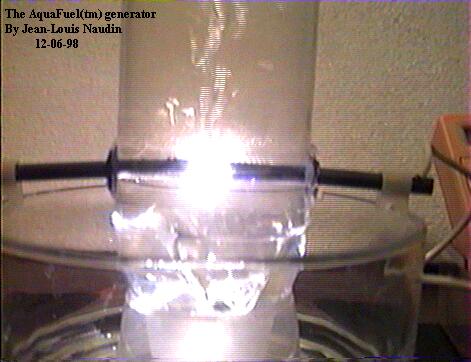

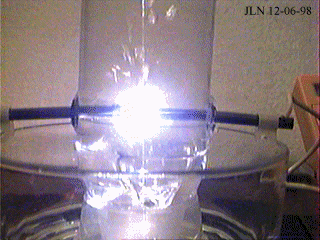

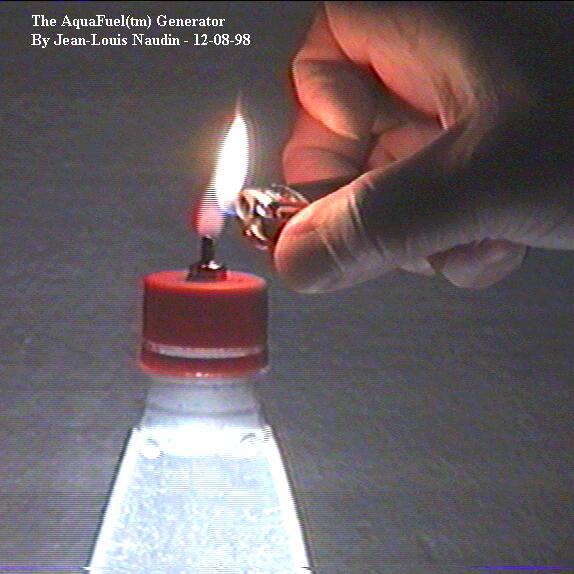

4) Now, your are ready to produceAquaFuel(tm)......

For more technical informations, you mayvisite the main TTL web site at http://www.toupstech.com/aquafuel/index.html
AquaFuel™ is a registered trademark of Toups TechnologyLicensing (TTL)
Some reference documents :
- Infinite Energy Vol.2, No9, 1996
- Infinite Energy Vol.2, No10, 1996
- Infinite Energy Vol.2, No11, 1997
- Infinite Energy Vol.4, No19, 1998

If you need more informations or if youhave any suggestions send me yourFeedback
