This device called the magnetromapparata was invented in 1933. It
needed no outside power sources to function.
Since an official interest was noted from the heads of the
German navy at the time who felt an investigation was necessary
and an official report was produced.
Experts examined the device and could find no fraud. It was
judged Coler was an honest experimenter but no expert opinion was
forth coming to how the unit operated.

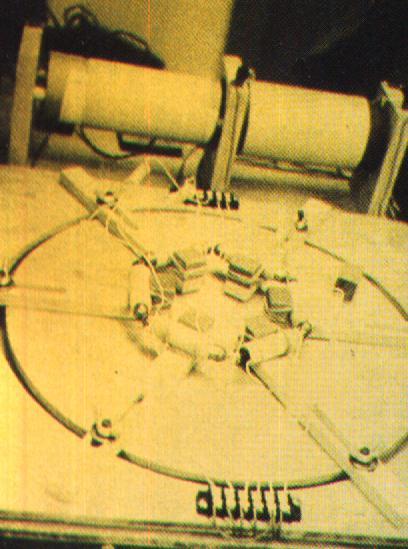

The device consisted of permanent magnets of steel ,copper coils
and capacitors in a special holding arrangement.

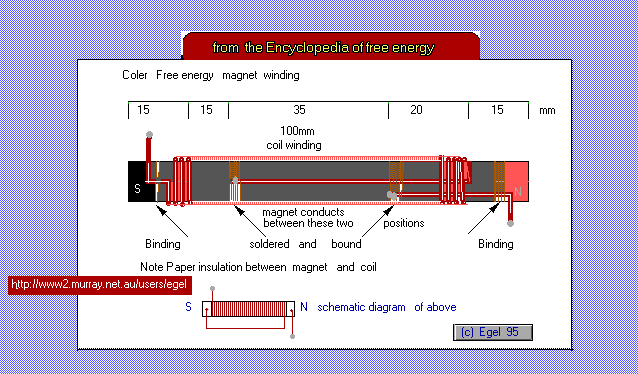

The device incorporated six steel magnets in a six sided
arrangement where the magnets were connected in series with the
coils of about .33 ohm resistance to form part of the circuit.
That is a conducting path was made through the magnet core.
The design also incorporated two small capacitors, a switch and
a pair of sliding solenoid coils , one fitting inside the other.
as shown in illustration.
To allow the device to power up the following was done.
The switch was left open. The magnet and coil combination
were moved slightly apart using a mechanical arrangement of
cranks and sliders that allowed each magno coil combination to
be altered equally, There was a wait of several minutes between
changes. The sliding coils were also set to different positions
relative to one another.
These changes were made often until a precise point was reach as
indicated on the voltmeter. The switch was then closed. There
were still more changes more slowly this time until the best
result was achieved.
Several tests gave the 450 millivolt for period of some hours
other times 60 millivolts was all they could get.
The best voltage obtained was about 12 volts and remained there
indefinitely until the unit was shut down.
I believe that this device has some similarities
to the Hendershot design.
Coler was also said to have created a device called the
stromerzeuger.
This consisted of a arrangement of steel magnets, flat coils and
copper plates on open arms mounted in a parallel combination with
one another and fed power from a tranformer from the centre..
The output is said to have lit a blank of lights of which the
output exceeded the input power level.
He was said to have built a 10 watt unit in 1925 and a 70 watt
unit in 1933.
Other units followed until the end of the war where work seems
to have come to halt.
One interesting note has come to hand from a correspondent named
"Steve who has informed me that
" The device had a radio active coating this
information may have been left out of the British Intelligence Report where
my information came from.
It seems that other free energy devices from that time Hubbard and Hendershot
among them may have had radium included in those devices according to some.
Usually the wiring is coated with a radium chloride or the likes to reduce
resistance to practically zero. Also, if it is used in a capacitor, it
then acts more like a semiconductor.
Using it in the core's of
transformers does the same as the wiring trick plus a little more. As far
as an antenna type of scenario, the wire now ionizes the surrounding air
around the antenna wire like a bubble that is saturated to the max, thus
any input from the atmosphere or anything, adds its energy to it.
Steve claims that he has done it and it works!
As far as experiments go. He did simple things like measure the resistance
of a piece of wire and then did it again with the radium chloride. More
times than not, the resistance was zero or a negative deflection. OH, BY
THE WAY, STEVE SAYS DO NOT USE DIGITAL METERS, the capacitors act like semiconductors
as stated earlier and the meter will go on the fritz for a few days before
returning to normal.
I promise! I set up another experiment where it was a
complete circuit and then made a one inch gap and placed a vial of radium
chloride about another inch away from the gap and the circuit continued to
function! Anyone can do this and will get the same results."
Thanks for information STEVE
