Fitch Impulse Generators

The Fitch circuit is used when better control of the impulse voltage is required than can be provided by the Marx circuit.

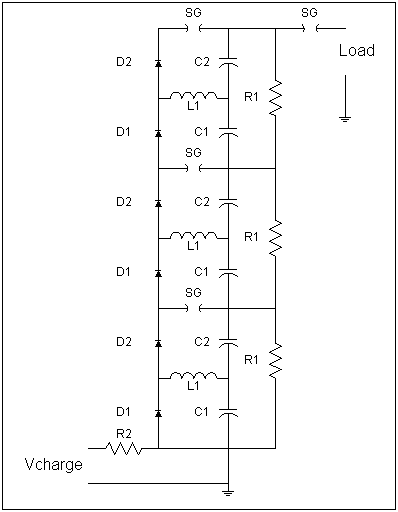

Fitch Impulse Generator Schematic
