The Author of this article Michael Barrie Smith
FORMULAR:
r2
Vout = B r dr FROM Michael Faraday.
r1
This formular applies to Homarpolar or Acrylic generators.
Vout = Voltage out.
= rotational velosity in Radians per second( you can convert radian to degrees if you like)
2 rad = 360 degrees.
r1 is the inner radius where the magnetic field exists (0 if it goes through the centre)
r2 is the outer radius where the magnetic field exists (usually the outer edge for Homopolar)
(for acrylic generator usually less than the outer diameter.)
B = magnetic field strength in Tesla ( Very important person for free energy research "Nikola")
To understand this equation one should have a grounding in algerbra.
BUT what it really means in laymens language is that output voltage is
Vout = {[(r2 x r2 x B) / 2] - [(r1 x r1 x B) / 2]} x
if r1 is the centre r1 = 0
From this it can be seen that the best way to increase voltage is to increase (rotational speed)
DANGER
MERCURY IS DANGEROUS IT ALSO GIVES OFF VAPOUR AT ROOM TEMPREATURE.
Note that both of these devices the input resistance is very close to ZERO therefore current limiting is required to keep current down and tempreature down. DON'T run these for extended periods because of pressurisation of the vessels will cause a explosion. You do these at your OWN RISK.

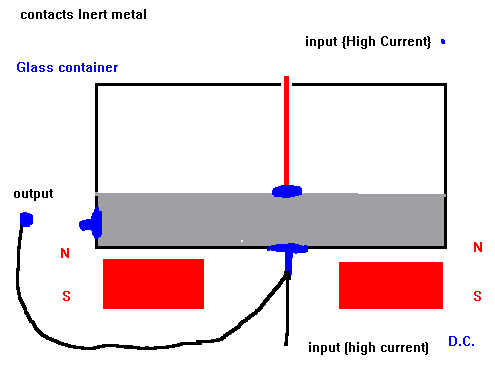

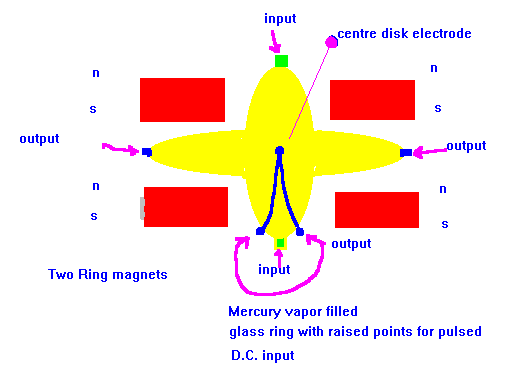

The second experiment is filled with Mercury TAKE EXTREAME CARE AS HIGH CURRENTS WILL CAUSE THE MERCURY TO BOIL AND SPLASH.
Michael Barrie Smith
P.O Box 492
Ingham
Queensland
Australia
