A simple school science Fair device for students for making your own hydrogen and oxygen.
With the current petroleum prize again reaching record highs, interest is once again focusing on alternative methods of propulsion and one likely contender is the fuel source called hydrogen.
This device below will produce small amounts of both oxygen and hydrogen for you to experiment with.
The unit is made from storm water pipe and the measurements are not critical and you can use anything you can put your hands on,as long as it made from plastic.
Do not use metal pipe as this will soon become unserviceable due to the caustic soda we place in the water to make it conductive at a later stage.
You need the following
Some stainless steel mesh
You will need 2 plastic storm water pipe elbows suitable for the plastic pipe you are using.
3 plastic storm water pipe tees
and at least 2 end caps ,The other three are optional and you may not really need them.
and several lengths of storm water pipe to connect it all together.
some PVC pipe Glue
some stainless steel wire
a couple of hose camps
two metal patio type brackets

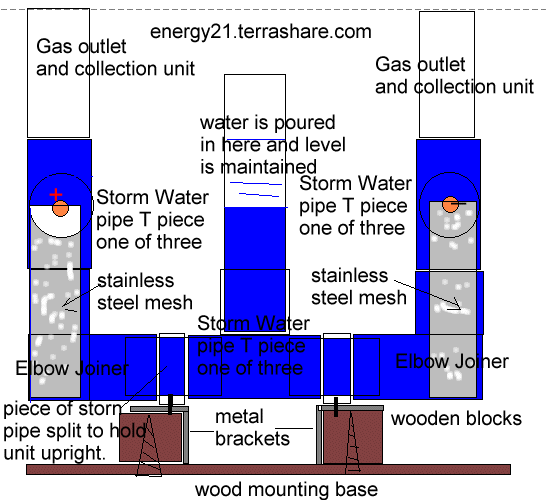

A wooden base board and a couple of blocks to mount the brackets on as per illustration
Two pieces of storm water pipe cut down the middle ,top to bottom, so that it will slip over the bottom sections of the gas unit E looking pipe unit (look near the metal brackets shown in illustration above.)
These split pieces of pipe are held in place with a small bolt inserted through a hole drilled in it and screwed up tightly to the metal bracket (see illustration).
When the E shape pipe gas assembly is constructed,these separate cut off pieces of pipe fit over the bottom of gas unit piping and then hold it in place by means of a screwed metal pipe clamps and then is finally glued to reinforce the mounting section and the gas producing unit upright position.

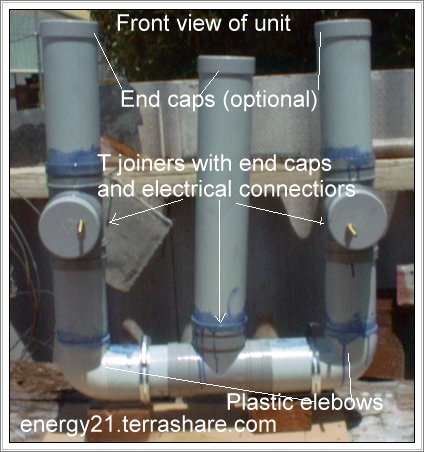

Now that you have everything, place together as shown in the above photograph.
Drill one small hole in each of two end caps, and then insert by screwing a brass or stainless steel threaded bolt into each cap ,(head should be on the inside with a couple of good washers) must be air tight.
Assemble The pipe work.
Start with bottom section first with the the middle T and the two U elbows.
Glue the center pipe in place.
Then glue the two outer up right pipe sections.
Insert stainless steel mesh into these sections
Check to see that you can get the next T connection in place,if your stainless steel mesh prevents an easy join, cut the mesh to suit and try again.
When you are happy with it, join some stainless steel wire to each mesh section, and then glue the plastic tee's in place leaving the wire coming out so that it can be joined to the end cap conductor connection with ease .
Place wire on the end cap brass screw and joined wire to it and screw up tightly.(bolt head should be on the inside of the end cap)
Glue the end caps in place and finish putting the other two pipe uprights in in place.
Leave to dry overnight.
Fill with water mixed with some caustic soda (sodium hydroxide) or baking soda through the middle pipe filler section (middle pipe),fill until water is level with the terminal connections on the other two pipes section.

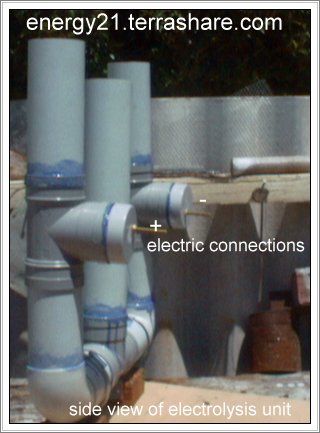

Connect a lead from a battery or other type of power source ( low voltage direct current ) to one side and the other lead to the other side bolt connection.

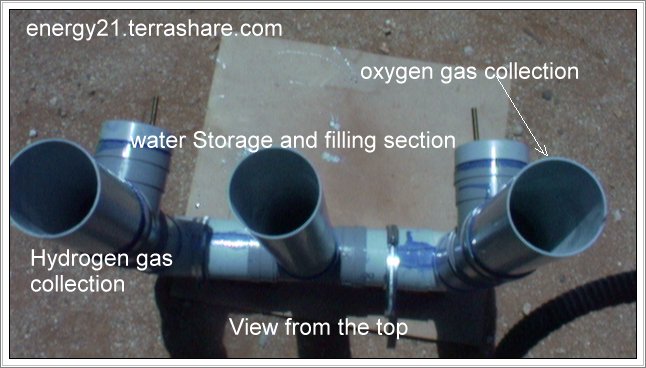

If every thing has been connected correctly you should see bubbles of hydrogen coming from one pipe collector and oxygen from the other.
Please note this web page has been presented for educational purpose's only and no responsibility will be taken for misuse of this information.
Geoff Egel
A footnote
After constructing this unit, whilst it does produce gas, I was rather disappointed in the results and volume as compared with the results of the following pages mentioned below.
This may be due to positioning the the electrodes at either end of the unit,for constructors, I would now suggest using one outside pipe, and the inner pipe, instead of the other outer leg,that would make the functioning unit look like a U shaped pipe arrangement.
This would also shorten the distance between electrodes, which may improve the gas output.
If you want to do away with the extra leg, this may also improve the functioning of unit,that is if you don't need a water inlet.
If others see this page and have some practical experience, they would like to share,that may be of help to me, and others ( science fair students etc,) in making decent amounts of gas namely pure hydrogen by the electrolysis method and is a simple method and not too expensive as well,please send me an email explaining how, and I will place the information at this web page,as soon as practical(Thanks)
