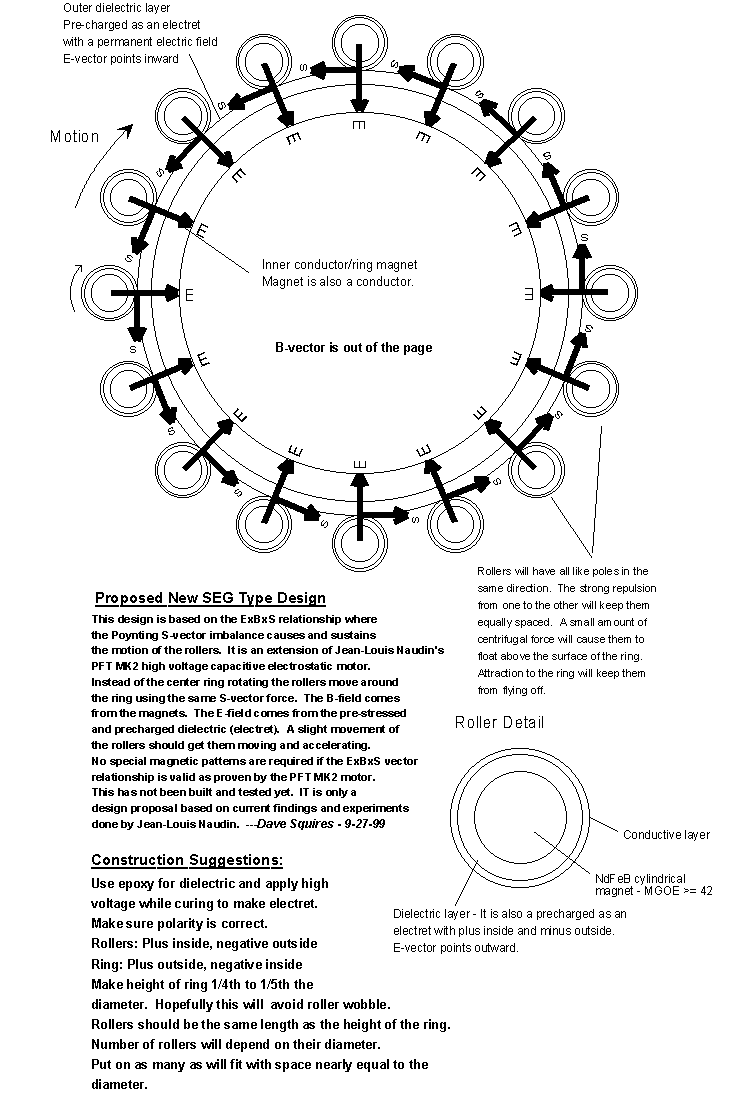

Proposed New SEG Type Design

This design is based on the ExBxS relationship wherethe Poynting S-vector imbalance causes and sustains the motion ofthe rollers.
It is an extension of Jean-Louis Naudin's PFT MK2 high voltage capacitive electrostatic motor.

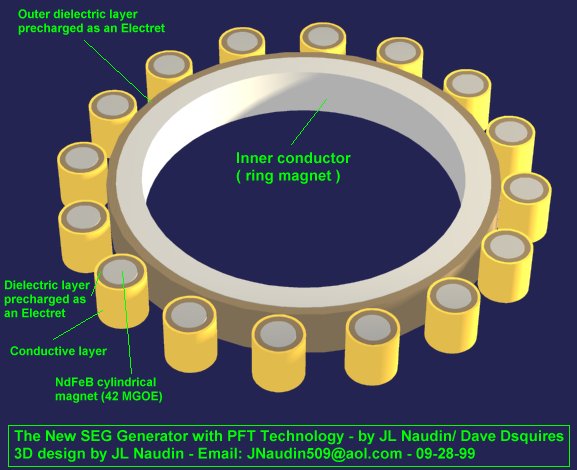

Instead of the center ring rotating the rollers movearound the ring using the same S-vector force. The B-field comesfrom the magnets. The E-field comes from the pre-stressed andprecharged dielectric (electret). A slight movement of therollers should get them moving and accelerating. No specialmagnetic patterns are required if the ExBxS vector relationshipis valid as proven by the PFT MK2 motor.

This has not been built andtested yet. It is only a designproposal based on current findings and experiments done byJean-Louis Naudin.

Dave Squires- 9-27-99
